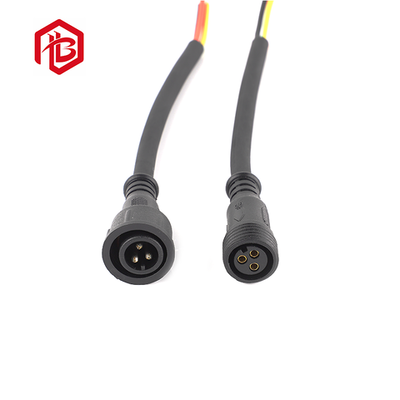

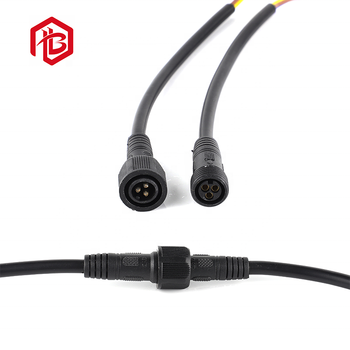

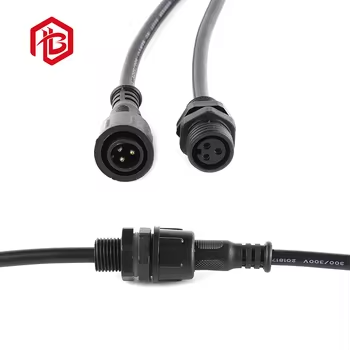

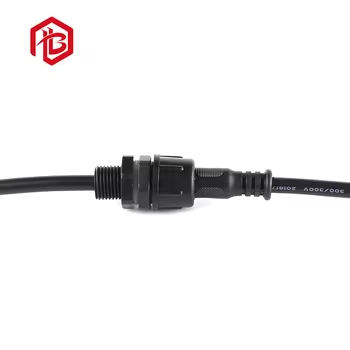

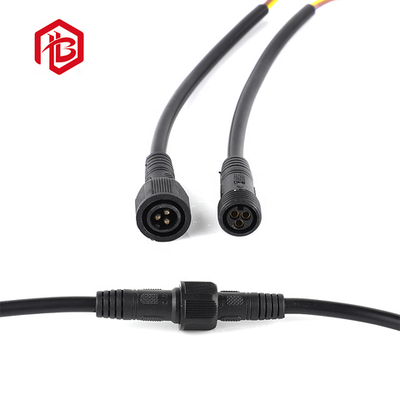

| ハイライト: | M19 waterproof LED cable connector,IP68 circular connector 4A rated,LED cable connector with warranty |
||
|---|---|---|---|
| Parameter | Specification |
|---|---|
| Brand | Bett |
| Application Scope | LED industry, Marine, geothermal, street lighting, aquaculture, laser, lighting, furniture, displays |
| Interface Type | AC/DC |
| Shape | Round/Flat |
| Contact Material | Pure phosphor copper |
| Joint Material | PVC/PBT/PA66/PC+ABS |
| Pin Configuration | 2-12 core/2-12 needle |
| Rated Voltage | 24V DC (110V AC available) |
| Current Rating | 1-50A |
| Breakdown Voltage | 1500V or higher |
| Working Temperature | -40°C to 105°C |
| Protection Grade | IP65, IP68 (custom requirements available) |
| Cable Materials | PVC, rubber, silicone, PE (custom options available) |
| Certifications | CCC, VDE, UL, ROHS, SGS (upon request) |
| Standard Cable | 0.75mm² cross-section, 200mm length (customizable) |
