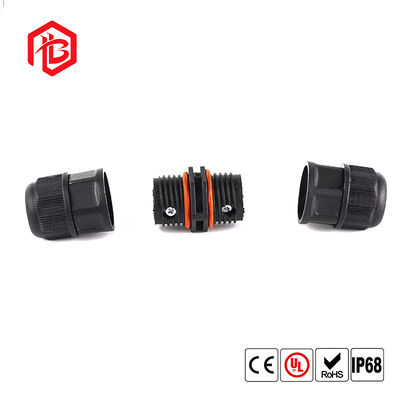

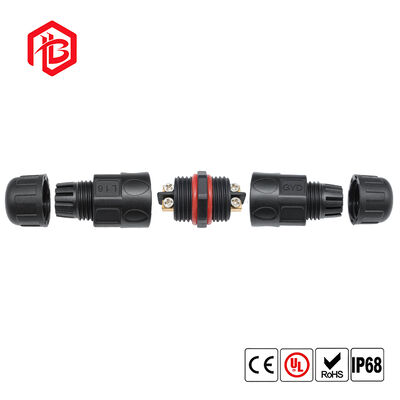

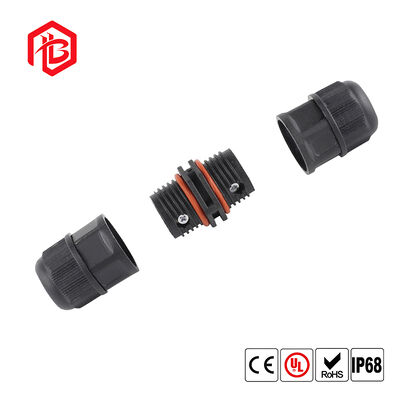

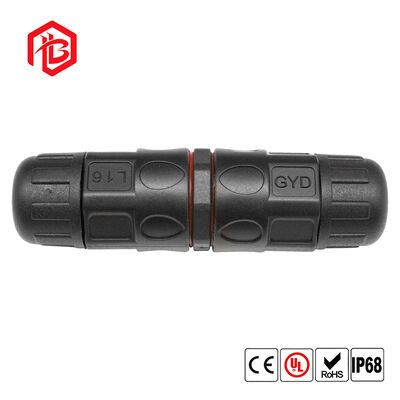

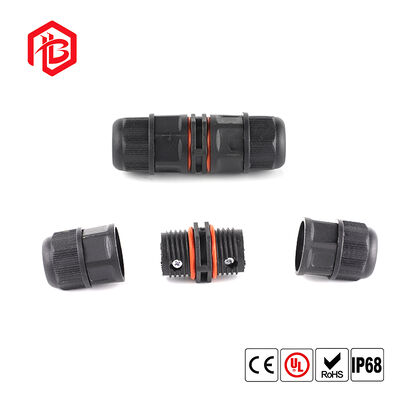

L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System

認証
中国 Shenzhen Bett Electronic Co., Ltd. 認証
中国 Shenzhen Bett Electronic Co., Ltd. 認証
顧客の検討
それはよい会社で、よりよいservice.theseが常にとして良質そして速いですあります!

—— アレン木

防水コネクターで長年にわたり専門にされる!驚くばかりの販売人、非常によいプロダクト。ありがとう!

—— マーティンBledsoe

オンラインです

L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System

L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System
L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System

大画像 :  L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System

商品の詳細:

起源の場所: 中国
ブランド名: BETT
証明: CE UL RoHS
モデル番号: M6

お支払配送条件:

最小注文数量: 50
価格: 2.7
受渡し時間: 5~8営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
詳細製品概要
定格電流: 4A 6A 8A IPレベル: IP68
接点材質: ハウジング材質: ナイロン
性別: 男性/女性 形: 円形、きっかり
ケーブルのマッチング: <=0.5mm2 <=0.75mm2 <=1.00mm2 電線の外径: 5mm2--8mm2
挿抜サイクル数: 5000回の嵌合サイクル 運用格付け: -40℃~+105℃

L16 Male/Female Waterproof Connector 6A Copper for Aerospace FPC PCB Solar Power System
Product Specifications
Item Details
Brand Bett
Scope of Application LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and more
Types Waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface Type AC/DC
Shape Round/flat look
Process Stamping/welding/injection molding
Feature Waterproof
Contact Material Pure phosphor copper
Joint Material PVC/PBT/PA66/PC + ABS
Pin Number 2-12 core
Line Length Any (mm)
Form Socket, plug stamping or injection after welding
Rated Voltage 24 V DC 0 (AC 110 V, 110 V)
Current Rating 1-50A
Breakdown Voltage 1500 V or higher (special requirements should be mentioned in advance)
Working Temperature -40 ~ 105 °C
Protection Grade IP65 - IP68 (other requirements when ordering, please specify)
Wire Materials PVC, rubber, silicone, PE and more, other according to customer requirements, routine for GB RVV sheath line
Certification Can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Appearance Color Black, white, transparent, etc
Normal Product Joint is made of PVC, wire type for CCC GB RVV sheath line, regular length for each 200 mm. Can be designed and manufactured according to customer demand orientation, non-standard products
Cable Inside Section 0.75 square (normal)
Cable Length Any length can be customized for customer request, (20 cm) regular long male female each
Product Images
L16 Waterproof Connector technical diagram and specifications L16 Waterproof Connector dimensional view and pin configuration L16 Waterproof Connector assembly and application examples Secure packaging and shipping process for waterproof connectors
Product Line & Customization Services
  • Main Product Line: M5, M12, Aviation Connectors, Panel Mount Connectors, Specialized Solutions
  • OEM/ODM Services: Custom development based on your drawings and samples
  • Customization Available: Design and manufacturing for specific pin counts, cable specifications, colors, and lengths
Ordering & Delivery Information
Minimum Order Quantity Varies by item (1pc to 100pcs)
Free Samples Available for low-cost products (customer pays freight)
Delivery Time
  • Most items: within 10 working days
  • Hot-selling items: 3-5 working days
  • Customized items: case by case basis
Payment & Support
Payment Terms T/T, PayPal, Western Union, Alibaba Guaranteed Payment
Quality Guarantee Returns accepted for quality issues with long-term online service
After-Sales Service Comprehensive support including replacement for damaged items, assembly guidance, and responsive solutions
Ordering Instructions

When ordering, please specify the following requirements:

  • Pin configuration
  • Cable cross-sectional area
  • Color preference
  • Cable length
  • Tail stripping and tinning length (standard is 3cm stripping and 3mm tinning)

Other special requirements should be submitted with your order. Customizable any length; regular 20 cm male/female pairs available.

Note: All specifications can be customized to meet your specific application requirements.
